[AMS Lite 4-pin Extension Cable]

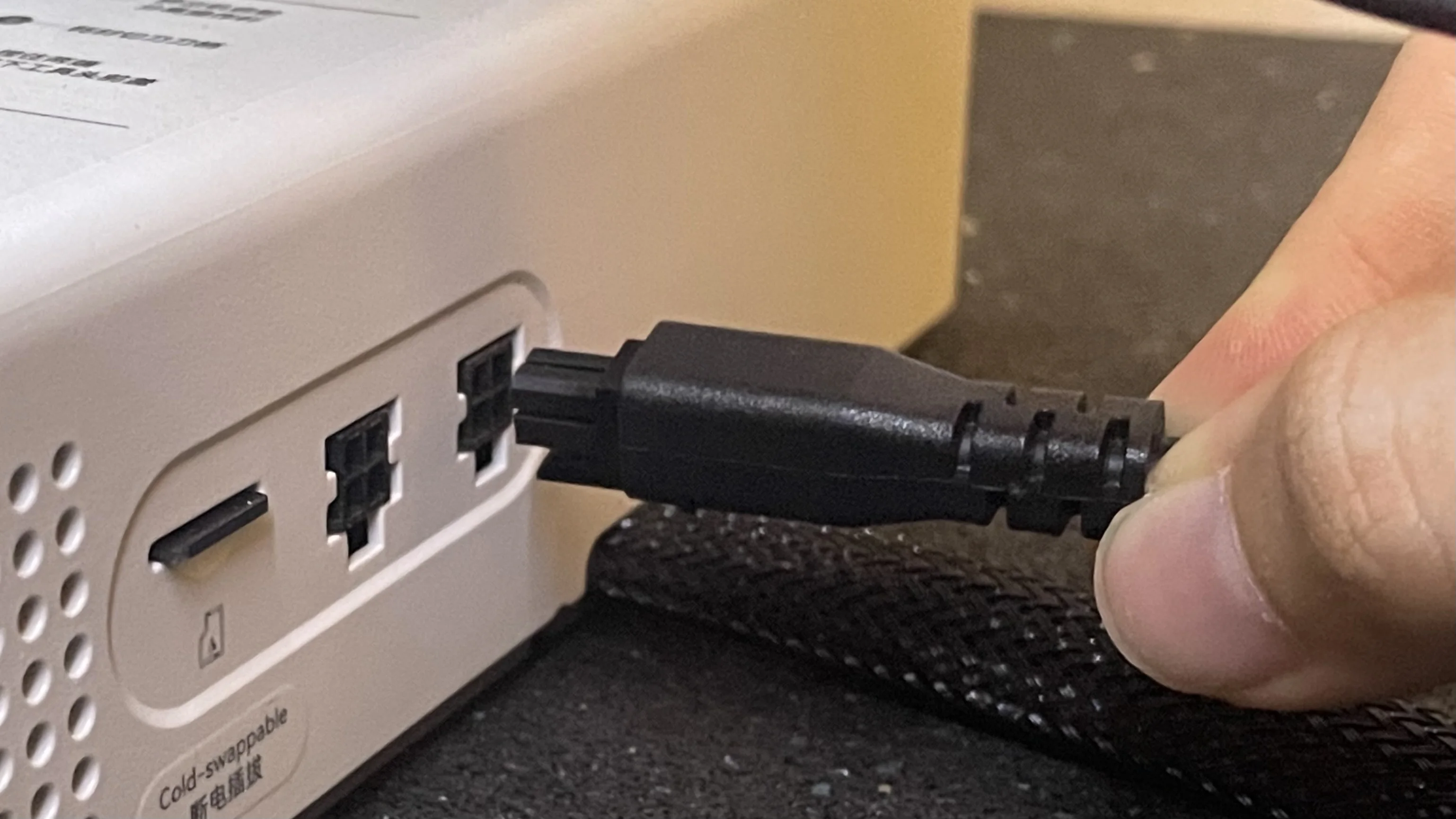

This cable is used to connect A1 series hosts and AMS Lite devices, extending AMS Lite power and data cables by either 0.5m or 1m.

The extension cable adopts a thickened cable with an outer diameter of 5mm, and the interface uses a rubber-coated process for more durability and reliability.

Produced using superior raw materials and tested and certified to higher standards, we ensure the safety and stability of your equipment in use.Certified by UL, CE, and RoHS 2.0.

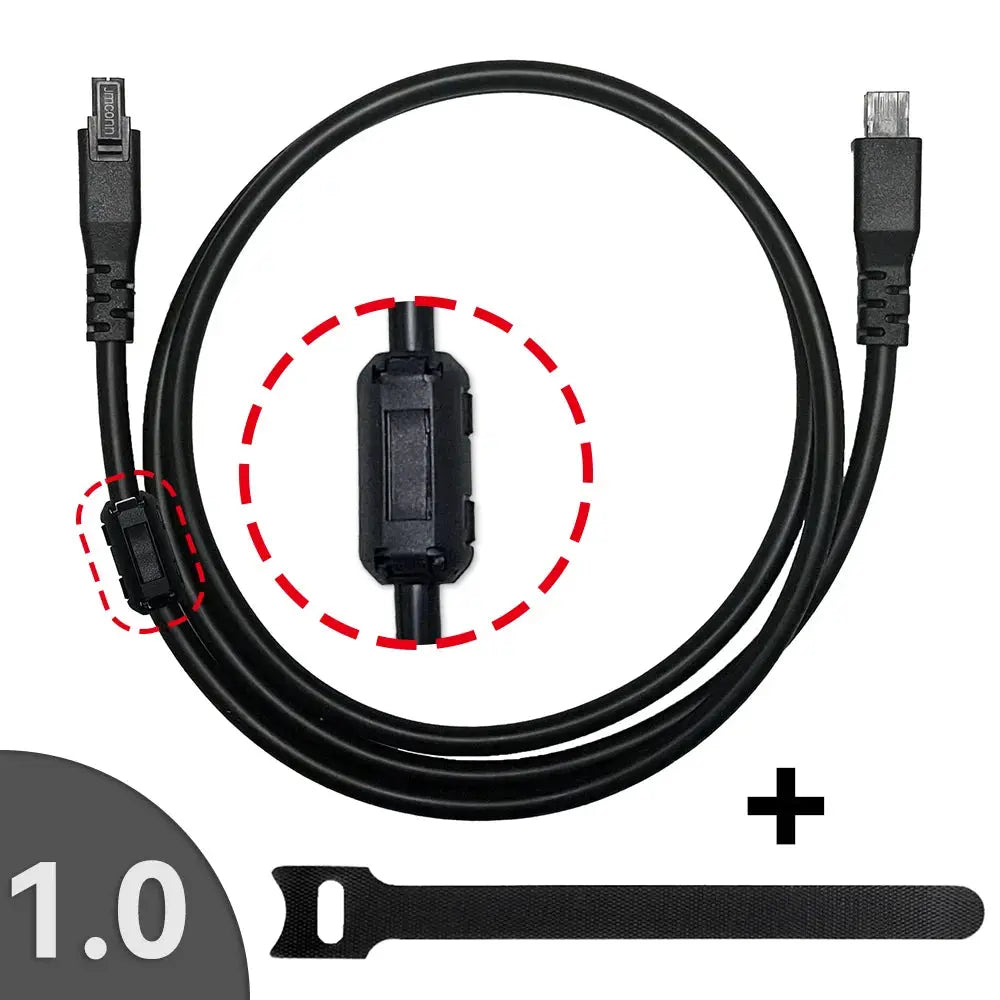

Can opt for a version with an EMI suppression magnetic ring, which can reduce signal interference and enhance printing stability.

Using this extension cable allows the AMS Lite to be placed in a more comfortable position farther away from the device, and a magic tape cable tie is included for easy cable management.

*0.5M ver. without magic tape cable tie.

Cable length: 500mm/19.7in or 1000mm/39.37in

Product color: Black
Wire material: PVC
Core material: High-purity copper
Core specification: 22AWG

Is the safety certification genuine?

InnoTech guarantees that the bus cables produced have passed CE, UL safety certifications, as well as RoHS 2.0 environmental certification, making them safe to use with your Bambu Lab printer. If needed, we can provide you with the certification certificates.

Can multiple extension cables be purchased and used in series?

Yes, but it is not recommended. The 1m extension cable is the maximum length supported by the AMS Lite, which can extend the power cable to a total length of 1.6m. The maximum feeding distance for the AMS Lite feeder is only 1.2m. Therefore, when replacing with a longer PTFE tube, please ensure to take into account the corresponding limitations.
